Steel Stair Treads Are A Type Of Steel Plate Used On Stairs Designed To Provide Extra Stability And Anti-Slip Features. It Is Usually Made From High-Strength Steel And Has A Cut Or Embossed Surface For Added Slip Resistance.
Steel Ladder Treads Are Widely Used In Various Building Stairs, Platforms, Steps, And Other Places, Especially In Areas Where Extra Stability And Anti-Slip Capabilities Are Required. Whether It Is An Indoor Or Outdoor Staircase, Steel Stair Treads Can Provide Users With A Safe And Comfortable Stepping Experience.
Steel Stair Treads Are A Steel Product That Enhances Stair Safety By Providing Stability And Anti-Slip Properties. It Has The Advantages Of High Strength, Durability, Anti-Slip, And Aesthetics, And Is Suitable For Various Stair Places To Provide A Safer And More Reliable Climbing Experience.
1) Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 25 x 3 to 100 x 8; The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
2) Bearing Bar Pitch (center to center):
12.5, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended, America standard is available <1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4) and so on. >
3) Material:
Mild Steel (Low Carbon Steel) or Stainless Steel
4) Surface Treatment:
Untreated, Painting or Hot DIP Galvanizing
5) Steel grating standards:
A) China: YB/T4001-1998
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985
E) Japan: JJS
| Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load(width×thickness) |
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 |
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
Product Tags:
|
|

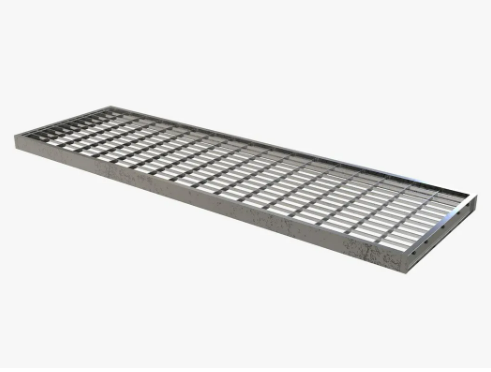

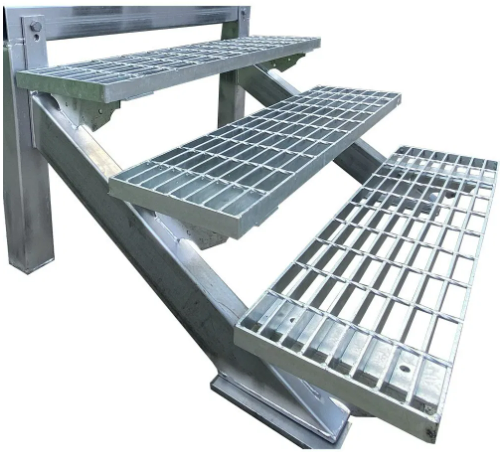

Hot DIP Galvanized Steel Stair Treads with High Strength Bearing Bar Specifications for Durable Anti-Slip Performance Images
|
