Fiberglass Reinforced Plastic Grate FRP Grating GRP Gratings Walkway Flooring

Brand Name : GNEE

Certification : SGS

Place of Origin : China

Price : Negotiable

Payment Terms : Negotiable

Supply Ability : 100 ton/week

Delivery Time : 5-9 working days

Packaging Details : Sea-worthy packing, ie wooden or steel tray with steel strip,etc

Contact Now

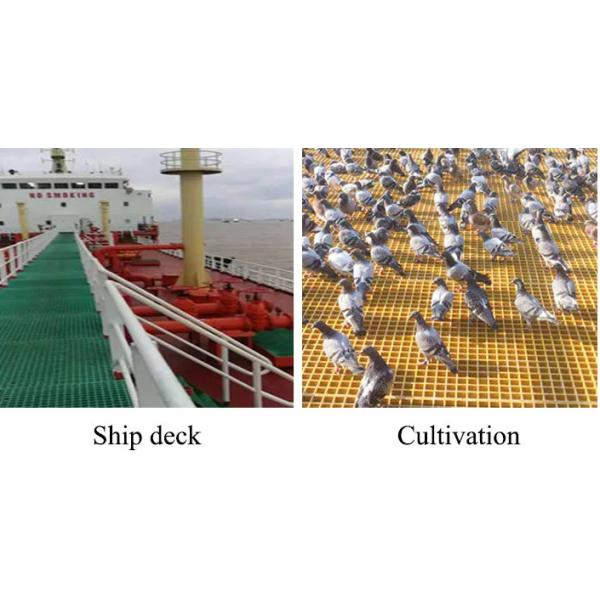

FRP/GRP Grating (Fiberglass Reinforced Plastic) is also known as glass-reinforced plastic grating or fiberglass grating. One of the main advantages FRP Grating has over steel is that FRP simply WILL NOT RUST. That's why you frequently see FRP used around saltwater for walkways, docks, and handrails.

Work with our fiberglass grating service to ensure your flooring, handrails, walls, and decks both indoors and out are fully protected against a wide range of uses and environments.

FRP Grating looks so much like steel, so you may have seen FRP at a marina and not even know it.
The price for FRP Grating is also often lower than steel or aluminum prices required to provide the same protection because FRP can perform at a much lower weight requirement.

Fiberglass Reinforced Plastic Grate FRP Grating GRP Gratings Walkway Flooring

Mesh size (mm) Thickness (mm) Bar thickness
(Top/ Bottom mm)		 Panel size available
(mm)		 Weight (kg/m2) Open Rate
(%)
38*38 13 6.0/5.0 1220*3660,1220*4000,1220*2440, 915*3050, 1268*4010 6 78%
14 6.0/5.0 1220*3660,1220*4000,1220*2440, 915*3050, 1268*4010 6.5 78%
20 6.0/5.0 1220*3660,1220*4000,915*3050 9.8 65%
25 6.3/4.8,6.5/5.0 1220*3660,1220*4000,915*3050 12,12.3 68%
30 6.5/5.0 1220*3660,1220*2440,915*3050 14.6 68%
38 7.0/5.0 1220*3660,1220*2440,915*3050 21.5 68%
50 8.0/6.0,11.0/9.0 1220*3660,1220*2440,915*3050 30,42 56%
60 10.5/9.0 1220*3660,1220*4000,915*3050 50.4 54%
70 11.5/9.0 1230*4010 58.8 49%
40*40 25 5.0/3.8,6.0/4.0, 7.0/5.0 1220*3660,1220*4025,1000*4040 9.5,11.5,12.3 67%
30 6.0/4.0,7.0/5.0 1220*3660,1220*4025,1000*4000 15,14.6 67%
38 6.0/4.0,7.0/5.0 1220*3660,1000*4000,1220*4025,1220*2440 20,19.2 67%
40 7.0/5.0 1220*3660,1000*4000,1220*4025,1220*2440 19.5 67%
43*43 25 5.0/3.8 1220*4000,1220*4054,1220*3660, 1003*4054 9
50*50 15 6.0/5.0 1220*3660,1220*2440,1220*4000 5.9 82%
25 7.0/6.0 1220*3660,1220*2440,915*3050 11.5 80%
40 6.8/5.0 1778*4531,1225*4531 18.2 78%
50 8.0/6.0 1220*3660,1220*2440,915*3050 23 78%
63 8.3/6.0 1220*3660,1220*2440,1220*4000, 915*3050 28.8 78%
52*52 50 5.0/5.0 1220*4000 21
79*79 23 6.5/5.0 405*3569 5.7 80%
83*83 25 7.0/5.0 1007*4007,1007*3007 5.8 84%
38 7.0/5.0 1007*4007,1007*3007 9.5 84%
40 7.0/5.0 1007*4007,1007*3007 10.7 84%

Fiberglass Reinforced Plastic Grate FRP Grating GRP Gratings Walkway Flooring

Fiberglass Reinforced Plastic Grate FRP Grating GRP Gratings Walkway Flooring

Concentrated line load-deflection in mm
38*38*25

SpanDeflection KG/M² Load limit
75 150 300 450 600 750
450 0.559 1.146 2.15 3.073 4.115 4.75 3910
600 0.864 1.702 3.505 5.156 6.706 8.179 2924
900 2.896 5.918 12.116 18.44 --- --- 1948
1200 5.715 11.63 --- --- --- --- 1461

38*38*30

SpanDeflection KG/M² Load limit
75 150 300 450 750 1500
300 <0.254 <0.254 0.254 0.508 0.762 1.524 9923.4
450 0.254 0.508 1.016 1.524 2.54 --- 4827.6
600 0.508 1.27 2.286 3.556 5.842 --- 4112.4
750 1.27 2.54 4.826 7.366 12.446 --- 3173.7
900 1.778 3.81 7.62 11.43 --- --- 2637.3

38*38*38

SpanDeflection KG/M² Load limit
75 150 300 450 600 750
300 0.279 0.356 0.483 0.61 0.76 0.889 17116
600 0.356 0.66 1.245 1.85 2.46 3.073 8718
900 0.864 1.803 3.368 5.563 7.41 9.29 5817
1200 2.261 4.749 9.677 14.63 19.58 --- 3755

50*50*50

SpanDeflection KG/M² Load limit
75 150 300 450 600 750
300 0.279 0.305 0.406 0.483 0.635 1.041 21727
600 0.356 0.508 0.813 1.128 1.735 3.327 11713
900 0.508 1.118 2.235 3.2 5.156 10.058 7780
1200 0.914 1.93 3.937 5.918 9.957 --- 5834
