stair treads steel grating is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, overlock process such as processing and into customer.
requirements finished products. It's usually used in industrial construction projects. We have 4 types for choose, there is welded
fixing stair treads, clip fixing galvanized stair treads, checker plate stair treads.
1)There are four kinds of stair treads T1,T2,T3,T4.
T1 Welded fixing and Without nosing
T2 Bolted fixing and without nosing,easy to installation and teardown.
T3 Welded fixing and with checkered plate nosing, can be skid.
T4 Bolted fxing and with checkered plate nosing, easy be installation,
teardown and can be skid.
2) Material: Mild Steel (Low Carbon Steel) or Stainless Steel
3) Surface Treatment:
Untreated, Painting ,Powder coated or Hot dip Galvanizing
4) Steel grating standards:
A) China: YB/T4001-1998
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1988
E) Japan: JJS
steel stair treads specification
| Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load(width×thickness) |
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 |
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
Product Tags:
|
|

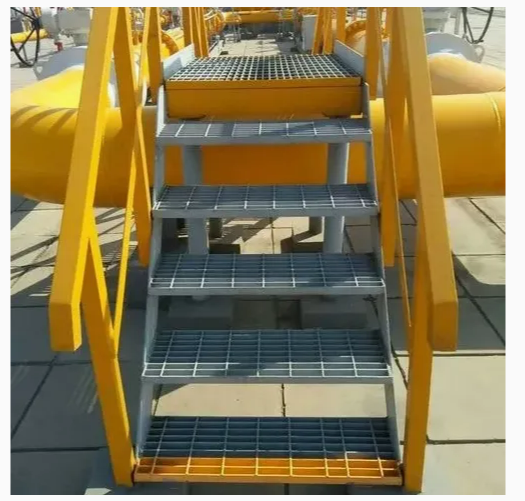

Heavy Duty Galvanized Carbon Steel Outdoor Stair Treads Images
|
