30X3mm Catwalk Hot DIP Galvanized Metal Bearing Bar Grid Serrated Weld Steel Mesh Treads Trench Drainage Cover Tec-Sieve Expanded Steel Grating for

Brand Name : GNEE

Certification : SGS

Place of Origin : China

MOQ : 10 square meter

Price : Negotiable

Payment Terms : Negotiable

Supply Ability : 100 ton/week

Delivery Time : 5-9 working days

Packaging Details : Sea-worthy packing, ie wooden or steel tray with steel strip,etc

Contact Now

Perforated Safety Grating Plank Advantages
Safe Surface: Grips soles securely - in all directions. Non-slip perforated safety grating surfaces are ideal for inside or outside locations where mud, ice, snow, oil and detergents can create hazardous walking conditions.
Helps Extend Life: Sturdy construction provides the advantages of heavy load-carrying capacity with minimal deflection; rugged durability with longer-lasting performance.
Economical To Install and Use: Offering a lowest total installed cost, Perf safety grating also features long-lasting, rust- resistant materials and finishes.
Versatile: Perf safety grating combines safety and durability with ease of fabrication and versatility.
30X3mm Catwalk Hot DIP Galvanized Metal Bearing Bar Grid Serrated Weld Steel Mesh Treads Trench Drainage Cover Tec-Sieve Expanded Steel Grating for
Benefits of Anti-slip Stair Treads
High strength to weight ratio due to its lightweight design
Slip resistance in all-weather condition due to the grating and tread's embossed traction button
Large debossed holes provide maximum debris drainage
Panel width allows 50% of free air to come in
Single-piece metal construction
Low maintenance
Economical
30X3mm Catwalk Hot DIP Galvanized Metal Bearing Bar Grid Serrated Weld Steel Mesh Treads Trench Drainage Cover Tec-Sieve Expanded Steel Grating for

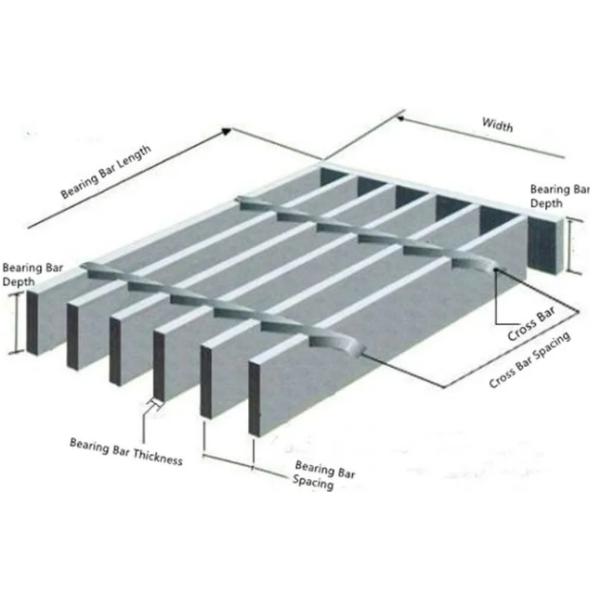

Item
Description
Bearing bar
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc

I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc

US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1
1/2''x1/8'' etc
Bearing bar pitch
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc

US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc
Twisted Cross Bar Pitch
38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Material Grade
ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400,

Mild steel & Low carbon steel, etc
Surface Treatment
Black, self colour, hot dip
galvanized, painted, spray coating
Grating Style
Plain / Smooth, Serrated /teeth, I bar, serrated I bar
Standard
China: YB/T 4001.1-2007,
USA: ANSI/NAAMM(MBG531-88),
UK: BS4592-1987, Australia: AS1657-1985,
Germany: DIN24537-1-2006, Japan :J
30X3mm Catwalk Hot DIP Galvanized Metal Bearing Bar Grid Serrated Weld Steel Mesh Treads Trench Drainage Cover Tec-Sieve Expanded Steel Grating for
